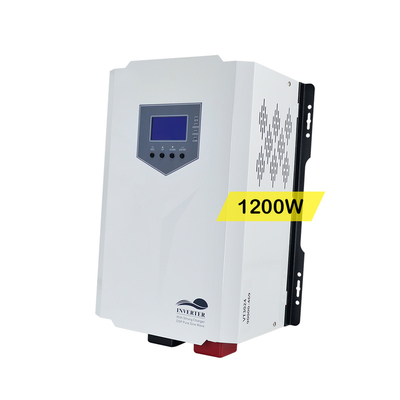

Best Price Techfine 1500VA 1200w Off Grid Low Frequency Solar 12v 1.5KVA Inverter For Home 470mm*335mm*210mm

10.0 Pieces
MOQ
Best Price Techfine 1500VA 1200w Off Grid Low Frequency Solar 12v 1.5KVA Inverter For Home 470mm*335mm*210mm
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Model Number: VT1512M
Input Voltage: 12VDC
Output Voltage: 220VAC
Output Current: 30A
Output Frequency: 50Hz/60Hz
Output Type: Single
Size: 470mm*335mm*210mm
Type: DC/AC Inverters
Inverter Efficiency: >98%
Certificate: CE
Warranty: 12 months, 1 year
Product name: solar inverter
Rated power: 1500VA/1200W
Input and output voltage: 220VAC
DC voltage: 12vdc
Display: LCD display
Transfer Time: <6ms
Protection: Oveeload, over charging,high AC voltage etc.
Waveform: Pure sine wave
Maximum PV array open circuit voltage: 150vdc
Основная информация
Сертификация: CE
Model Number: VT1512M
Оплата и доставка Условия
Packaging Details: Techfine Inverter are packing with strong and stable carton, and using plastic foam to reduce vibration and shock to ensure our products are intact and safety. All Techfine Products are provided with strong packaging suitable for ocean and inland transport
Supply Ability: 10000 Piece/Pieces per Month
Характер продукции
Features：
1.Pure sine ware output.
2.Optional MPPT/PWM solar charge controller 60A.
3.MPPT Efficiency max 98%.
4.DC Start & Automatic Self-Diagnostic Function .
5.High Efficiency Design & ”Power Saving Mode” to Conserve Energy .
6.Auto restart when Ac is recovering .
7.Smart battery charger design for optimized battery performance .
8.Selectable charging current based on applications .
9.AC input/DC input/Solar input optional priority .
10.Auto Restart Voltage.
Product Parameters
Capacity(VA)
VC1000VA
VC1500VA
VC2000VA
VC3000VA
VC4000VA
VC5000VA
VC6000VA
Rated Power
800W
1200W
1600W
2400W
3200W
4000W
4800W
Voltage(DC)
12V
24V/48V
48V
Nominal Voltage
220VAC
Voltage Range
154-265VAC ;185-264VAC ( selectable)
Frequency
50-60HZ Auto sensing
Power Factor
0.8
Voltage
220VAC
Frequency
50/60HZ
Waveform
Pure Sine Wave
Transfer Time (AC to DC)
<8ms
Transfer Time (DC to AC)
<8ms
Output Voltage Regulation
土10%
Bypass Mode
Yes
Saver Mode
Yes
Efficiency
>98%
Input Protection
Circuit Breaker
Output Protection
Circuit Breaker
Battery Type
VRLA / GEL /GEL DEEP CYCLE
Charging Current
20A
30A
20A/10A
30A/15A
40A/20A
55A/28A
30A
Low Level disconnect (Selectable)
10V- 11V
20V -22V/40V-44V
40V -42V
PWM controller Voltage range
15VDC-33VDC
30VDC-66VDC
60VDC-150VDC
PWM Maximum PV display open circuit voltage
38V
75V
75V
Maximum PV array power
720W
1400W/2800W
3400W
MPPT control voltage range
18V-150V
34V-150V/68V-150V
60V-150V
MPPT Maximum PV display open circuit voltage
150VDC
Maximum solar charge current
60A
LCD indicator status
AC input voltage/input frequency, PV voltage, PV current , Output Voltage/Frequency, Battery voltage, Load current etc.
LED indicator status
AC Line In:Green/Inverter:Red/Charging :Yellow/Alarm :Red
LOW battery alarm
Audible alarm-5 seconds beeping
Overload alarm
Audible alarm- continuous beeping
Fault
Audible alarm- continuous beeping
Temperature
0-60℃
Humidity
—10℃~90℃ Non condensing
Accoustic Noise(db)
>55dB
Size L*W*H(mm)
470mm*335mm*210mm
Weight (kg)
12
18.5
18.5
20
22
22
23
Products Details
Company Profile
FAQ
Q1. Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q2. Can I have a sample? A. Yes, we welcome sample order to test and check quality.
Q3. What about the lead time? A. Samples within 7 days, bulk production needs 20-25 working days.
Q4. What's your MOQ? A. We already have some instock model for sample,for bulk order,10-100 as MOQ base on different model.
Q5. are you factory or trading company A. We are factory, You can come and visit our factory at any time, or you can watch it through video
